Gearless Permanent Magnet Elevator Traction Machine 4000kg 3.0m/S

Gearless Permanent Magnet Elevator Traction Machine 4000kg 3.0m/S

  • Gearless Permanent Magnet Elevator Traction Machine 4000kg 3.0m/S
  • Gearless Permanent Magnet Elevator Traction Machine 4000kg 3.0m/S
Gearless Permanent Magnet Elevator Traction Machine 4000kg 3.0m/S
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-TMWTYF380
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now
Detailed Product Description
Name: Elevator Traction Machine Control: VVVF
Static Load: 1350~4000kg Voltage: DC220V
Model: Elevator Traction Machine Business Type: Manufacturer
Drive Mode: AC Persons: 6-10
Type: Elevator Traction Machine
High Light:

4000kg Permanent Magnet Gearless Traction Machine

,

3.0m/S Elevator Traction Machine

,

Lift Traction Machine Permanent Magnet

Gearless Permanent Magnet / Elevator Traction Machine 4000kg



Product Description

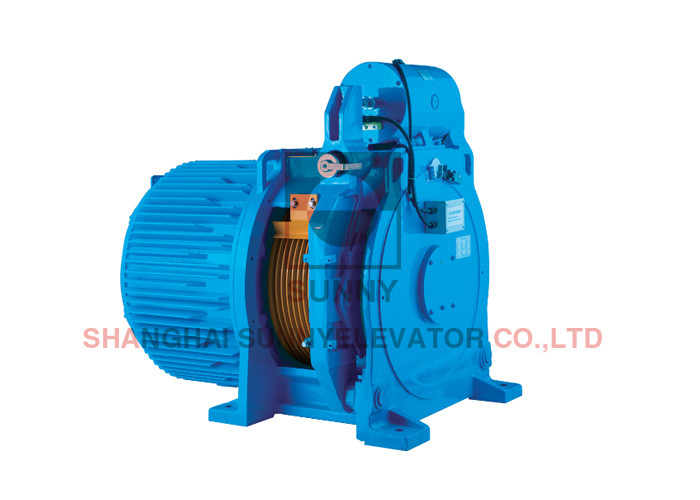

This series of permanent-magnet synchronous gearless traction machines has large capacity and dual supporting structures, with traction sheave located between two bearings, so force application is more reasonable.

Drum brakes are applied for the traction machines, which have high braking torque, high reliability and easy maintenance and commissioning.

Unique internal rotor construction and excellent magnetic field design, enable the product to have excellent performance, low noise level and high-speed steady operation.

Imported bearings are applied, which have high bearing capacity and long life. The Encoder is installed in various manners to meet different customer demands. This series of traction machines is applicable for the elevator with machine room.

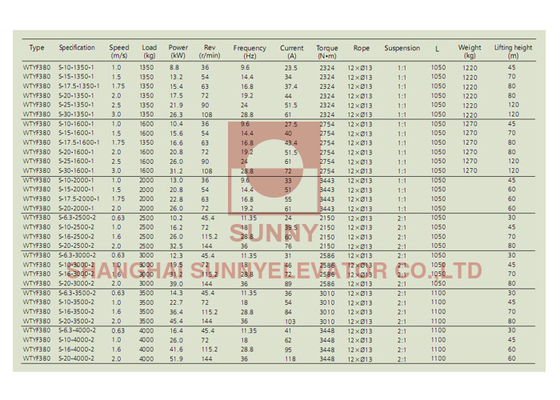

Traction ratio: 1:1,2:1
Rated capacity: 1350~4000kg
Rated elevator speed: 1.0,1.5,1.75,2,2.5,3.0m/s
Max. lifting height: 120m
Max. shaft load: 10000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening, and DC100V for brake holding



Gearless Permanent Magnet Elevator Traction Machine 4000kg 3.0m/S 0



Gearless Permanent Magnet Elevator Traction Machine 4000kg 3.0m/S 1









































































































Gearless Permanent Magnet Elevator Traction Machine 4000kg 3.0m/S 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
