Permanent Magnet Synchronous Gearless Elevator Traction Machine 630kg Rated

Permanent Magnet Synchronous Gearless Elevator Traction Machine 630kg Rated

  • Permanent Magnet Synchronous Gearless Elevator Traction Machine 630kg Rated
  • Permanent Magnet Synchronous Gearless Elevator Traction Machine 630kg Rated
Permanent Magnet Synchronous Gearless Elevator Traction Machine 630kg Rated
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-TMWTYF328
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now
Detailed Product Description
Name: Elevator Traction Machine Control: VVVF
Load: 1050~2000kg Voltage: DC220V
Model: Elevator Traction Machine Business Type: Manufacturer
Drive Mode: AC Persons: 6-10
Type: Elevator Traction Machine Speed: 3.0~4.0m/S
Pole: 20 Poles
High Light:

Permanent Magnet Elevator Traction Machine

,

Synchronous Elevator Traction Machine

,

Gearless Traction Machine 630kg

Gearless Elevator Traction Machine with Ø 210 Pitch, 630kg Rated



Product Description

This series of permanent-magnet synchronous gearless traction machines adapts double wrap, and the housing and support structure are integrated structure. So it has compact construction, with easy installation and maintenance, it's can bear high radial loads. Unique external rotor design is provided, low-noise block brake is mounted on both sides of the housing and operates with high sensitivity, high efficiency and good stability.

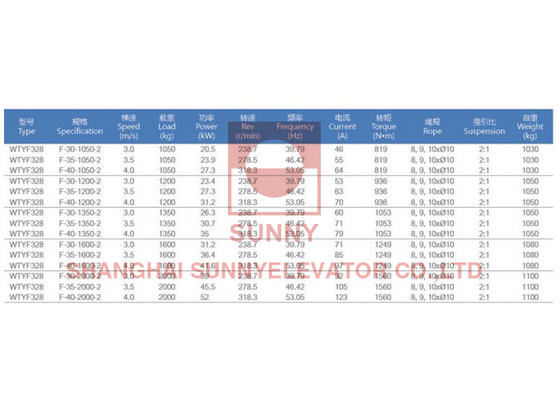

Traction ratio: 1:1,2:1
Rated capacity: 1050,1200,1350,1600, 2000kg
Rated elevator speed: 3,3.5,4m/s
Max. lifting height: 200m
Max. shaft load: 15000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening, and DC100V for brake holding
Number of motor poles: 20 poles



Permanent Magnet Synchronous Gearless Elevator Traction Machine 630kg Rated 0



Permanent Magnet Synchronous Gearless Elevator Traction Machine 630kg Rated 1









































































































Permanent Magnet Synchronous Gearless Elevator Traction Machine 630kg Rated 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
