Permanent Magnet Motor Drive Gearless Traction Machine For Elevator 380V

Permanent Magnet Motor Drive Gearless Traction Machine For Elevator 380V

  • Permanent Magnet Motor Drive Gearless Traction Machine For Elevator 380V
  • Permanent Magnet Motor Drive Gearless Traction Machine For Elevator 380V
Permanent Magnet Motor Drive Gearless Traction Machine For Elevator 380V
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-GETM5.0H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Product Name: Elevator Traction Machine Voltage: 380V
Suspension: 2:1 Brake: DC110V 2*0.89A
Weight: 580kg Max.Static Load: 5000kg
Guide Rail: T Guide Specification: ISO9001 / CCC / CE
Model: Elevator Traction Machine Type: Elevator Traction Machine
High Light:

Motor Drive Elevator Traction Machine

,

380V Gearless Lift Motor

,

Permanent Magnet Elevator Gearless Motor

Elevator Lift Motor Drive Elevator Traction Machine Permanent Magnet Motor For Elevator



Type:SN-GETM5.0H

Max axis load:5000kg
Motor Weight:580kg
Working duty:S5-60%ED
Ins.class:155(F)
Brake type:DZD-500

Product type Traction Ratio Load
(kg)
Elevator
Speed
(m/s)
Rated speed
(r/min)
Rated torque
(N.m)
Motor Brake Sheave
Power
(kw)
Voltage
(V)
Current
(A)
Poles
(P)
Frequency
(Hz)
Current
(A)
Voltage
(V)
Brake torque
(N.m)
Diameter
(mm)
Rope
nxd
β angle Y angle Goove pitche
(mm)
GETM5.0H-250/1350 2:1 1350 2.5 212 1050 22.6 340 50 16 56.6 2x1.15 DC110 2x1270 450 8xΦ10 96° 35° 15
GETM5.0H-200/1350 2.0 170 18 40 45.3
GETM5.0H-175/1350 1.75 149 15.8 35 39.6
GETM5.0H-160/1350 1.6 136 14.4 32 36.2
GETM5.0H-150/1350 1.5 127 13.5 30 34
GETM5.0H-100/1350 1.0 85 9 20 22.6
GETM5.0H-250/1250 2:1 1250 2.5 212 940 20.9 340 47 16 56.5 2x1.15 DC110 2x1270 450 8xΦ10 96° 35° 15
GETM5.0H-200/1250 2.0 170 16.7 38 45.3
GETM5.0H-175/1250 1.75 149 14.6 33 39.6
GETM5.0H-160/1250 1.6 136 13.4 30 36.2
GETM5.0H-150/1250 1.5 127 12.5 28 34
GETM5.0H-100/1250 1.0 85 8.4 19 22.6

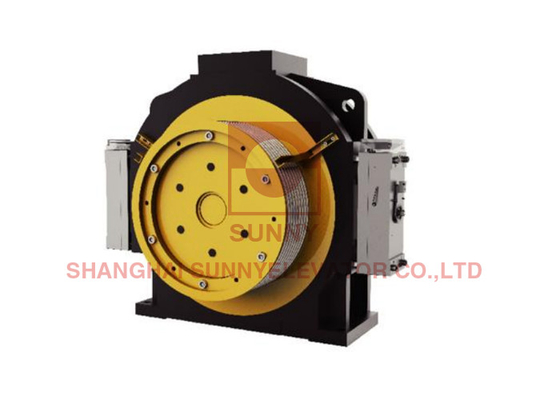

Permanent Magnet Motor Drive Gearless Traction Machine For Elevator 380V 0



Type:SN-GETM5.0H

Max axis load:8000kg
Motor Weight:1010kg
Working duty:S5-60%ED
Ins.class:155(F)
Brake type:DZD1-21800

Product type Traction Ratio Load
(kg)
Elevator
Speed
(m/s)
Rated speed
(r/min)
Rated torque
(N.m)
Motor Brake Sheave
Power
(kw)
Voltage
(V)
Current
(A)
Poles
(P)
Frequency
(Hz)
Current
(A)
Voltage
(V)
Brake torque
(N.m)
Diameter
(mm)
Rope
nxd
β angle Y angle Goove pitche
(mm)
GETM8.0H-250/2500 2:1 2550 2.5 184 2123 40.8 340 85.5 16 49.1 2x1.6 DC110 2x2654 520 7xΦ13 85° 35° 20
GETM8.0H-200/2500 2.0 147 32.7 68.5 39.2
GETM8.0H-175/2500 1.75 129 28.6 60 34.4
GETM8.0H-100/2500 1.0 73 16.3 32.3 19.5



Permanent Magnet Motor Drive Gearless Traction Machine For Elevator 380V 1



Permanent Magnet Motor Drive Gearless Traction Machine For Elevator 380V 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
