Product Details:
|
| Product Name: | Gearless Traction Machine | Voltage: | 380V |
|---|---|---|---|
| Suspension: | 2:1 | Brake: | DC110V 2*0.89A |
| Load: | 320~630kg | Max.Static Load: | 2000kg |
| Guide Rail: | T Guide | Specification: | ISO9001 / CCC / CE |
| Model: | Gearless Traction Machine | Type: | Gearless Traction Machine |
| Highlight: | Passenger Elevator Gearless Traction Machine 380V,Passenger Lift Traction Machine,3 Phase Gearless Lift Motor |
||

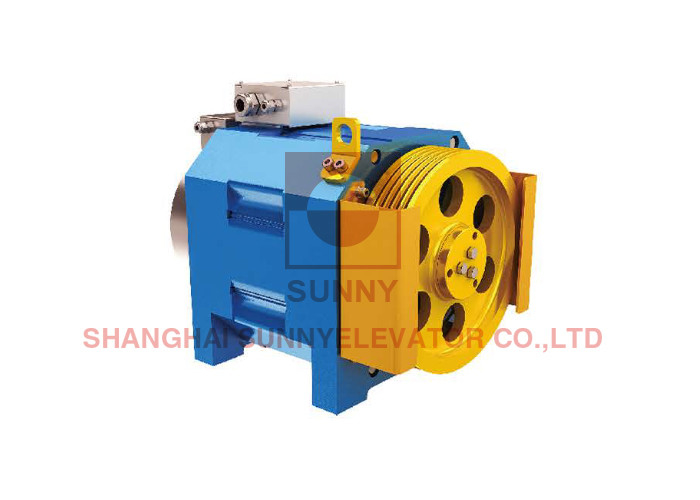

Highly Efficient Gearless Traction Machine For Passenger Elevator Lift Parts
Product characteristics
| Rated capacity: | 320,450,630kg |
| Rated elevator speed: | 0.63,1.0,1.6,1.75m/s |
| Max.shaft load: | 2000kg |
| Applicable converter: | 3 phase 400V |
| Brake current: | 2×1.32A |
| Brake voltage: | DC110V |
| Number of motor poles: | 20 poles |
| Duty type: | S5 40% |
Product description
This series of toothless traction machine adopts slim design, compact structure,easy to install small machine room, machine room.The traction sheave is cantilevered, which makes it easy for the user to install and dismount the traction sheave.
The stator core adopts a unique laminated design, eliminating the need for a stand and reducing the weight and cost of the host.The use of splined shaft brake brakes, compact structure,effective space-saving.more excellent performance.
The unique inner rotor structure and excellent magnetic field design enable excellent product performance, low noise , and stable operation.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
