Product Details:
|
| Name: | Gearless Motor | Load: | ≤1050kg |
|---|---|---|---|
| Speed: | ≤2.5 M/S | Roping: | 2:1 |
| Rope: | 6xΦ10 | Weight: | 322kg |
| Product Name: | Elevator Parts | Applicable: | Elevator Equipment |
| Transportation: | Sea Delivery | Warranty Time: | 12 Months |
| Model: | Gearless Motor | Type: | Gearless Motor |
| High Light: | Lower Noise Gearless Motor,2.5 M/S Elevator Gearless Motor,Gearless Traction Machine Motor |
||

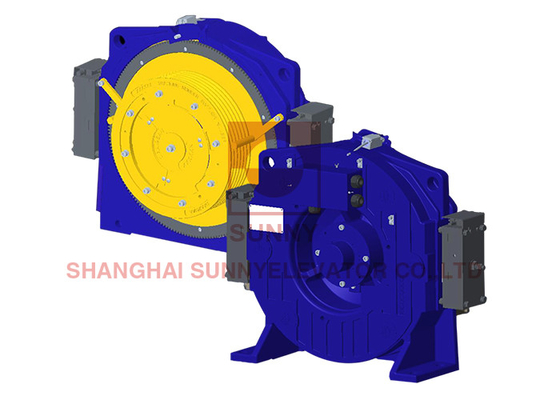

Lower Noise High Efficiency Gearless Motor For Elevator Parts
Low noise on and off
The speed of action is fast, and the speed of emergency stop is <0.15s
It has passed 3 million durability tests, much higher than the national standard requirements
It has passed the environmental test of high temperature and high humidity and vibration dust test.
Brake springs have passed 10 million long life cycle tests
High-quality Gonos microswitches are used
| Generals | |
| Duty | ≤1050kg |
| Speed | ≤2.5 M/S |
| Power | 16.5kw |
| Roping | 2:1 |
| Rope | 6xΦ10 |
| Over Balance | 45% |
| Size(LxWxH) | 875x355x650 |
| Weight | 322kg |
| Inertia | 5.4kg-㎡ |
| SSL |
22,000N(630kg machine) 24,000N(800kg machine) 28,000N(1050kg machine) |
| Motor Life | 20 years |
| Brake Torque | ≥777.5Nm |
| Motor Rated Torque | 644 Nm |
| Motor Peak Torque | 1159 Nm |
| Bearing | |
| Type | 6312-2RS&23024CA-2RS |
| Lubrication | Sealed for life |
| Encoder | |
| Pulse | 2048 PPR |
| Type | Sin/Cos |
| Sheave | |
| Diameter | 400mm |
| Material | QT600-3 |
| Roping | 2:1 |
| Grooves | Undercut(3~6 grooves) |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
