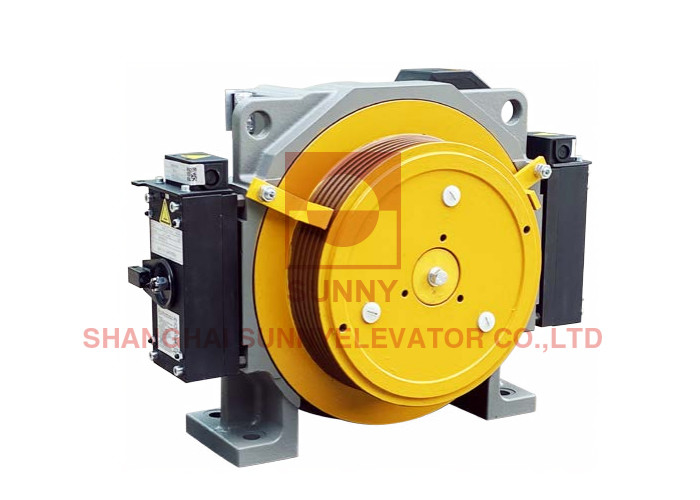

DC110V Machine Room Less Traction Elevator For Passenger Lift 380V

DC110V Machine Room Less Traction Elevator For Passenger Lift 380V
DC110V Machine Room Less Traction Elevator For Passenger Lift 380V

Large Image :  DC110V Machine Room Less Traction Elevator For Passenger Lift 380V

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-GTW7A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

DC110V Machine Room Less Traction Elevator For Passenger Lift 380V

Description
Product Name: Machine Room Less Traction Elevator Voltage: 380V
Suspension: 2:1 Brake: DC110V 2*0.84A(2*1.46A)
Weight: 190kg Max.Static Load: 2000kg
Applicable: Elevator Equipment Warranty Time: One Year
Model: Machine Room Less Traction Elevator Product: Machine Room Less Traction Elevator
Type: Machine Room Less Traction Elevator
High Light:

DC110V Machine Room Less Traction Elevator

,

Lift Gearless Traction Machine

,

Gearless Elevator Traction Machine 190kg

DC110V Machine Room Less Traction Elevator For Passenger Lift



Voltage : 380V
Suspension : 2 : 1
FZD10 Brake : DC110V 2×0.84A (2×1.46A)
Weight : 190kg
Max.Static Load : 2000kg

DC110V Machine Room Less Traction Elevator For Passenger Lift 380V 0


Load
(kg)
Speed
(m/s)

Sheave Diam
(mm)

Rope sheave
(mm)

Current
(A)
Torque
(Nm)

Rated Speed
(rpm)

Frequency
(Hz)
Power
(kw)
Pole Rating INS.Class IP Code
320 1.0 Φ325 3xΦ8x12 6.3 200 118 31.5 2.5 32 S5(40%) F IP41
320 1.5 Φ325 3xΦ8x12 8.9 200 177 47.2 3.7 32 S5(40%) F IP41
320 1.6 Φ325 3xΦ8x12 9.4 200 189 50.4 4 32 S5(40%) F IP41
320 1.75 Φ325 3xΦ8x12 9.4 200 206 54.9 4.3 32 S5(40%) F IP41
450 1.0 Φ325 4xΦ8x12 8.3 265 118 31.5 3.3 32 S5(40%) F IP41
450 1.5 Φ325 4xΦ8x12 11.9 265 177 47.2 4.9 32 S5(40%) F IP41
450 1.6 Φ325 4xΦ8x12 13.7 265 189 50.4 5.2 32 S5(40%) F IP41
450 1.75 Φ325 4xΦ8x12 13.7 265 206 54.9 5.7 32 S5(40%) F IP41
550 1.0 Φ325 5xΦ8x12 8.6 290 118 31.5 3.6 32 S5(40%) F IP41
550 1.5 Φ325 5xΦ8x12 12.4 290 177 47.2 5.4 32 S5(40%) F IP41
550 1.6 Φ325 5xΦ8x12 14.3 290 189 50.4 5.7 32 S5(40%) F IP41
550 1.75 Φ325 5xΦ8x12 14.3 290 206 54.9 6.3 32 S5(40%) F IP41
630 1.0 Φ325 5xΦ8x12 9.6 325 118 31.5 4 32 S5(40%) F IP41
630 1.5 Φ325 5xΦ8x12 13.9 325 177 47.2 6 32 S5(40%) F IP41
630 1.6 Φ325 5xΦ8x12 16 325 189 50.4 6.4 32 S5(40%) F IP41
630 1.75 Φ325 5xΦ8x12 16 325 206 54.9 7 32 S5(40%) F IP41



DC110V Machine Room Less Traction Elevator For Passenger Lift 380V 1

REMARK
1.The machine can be configured with the handwheel and the remote manual brake release which is 4m.
2.When this machine is used for loading 630kg,the coefficient of elevator balance system shouldn't be less than 0.47.
3.When this machine is used for loading≤450kg,the current of brakes are 2×0.84A; when this machine is used for loading >
450kg,the current of brakes are 2×1.46A.

DC110V Machine Room Less Traction Elevator For Passenger Lift 380V 2



DC110V Machine Room Less Traction Elevator For Passenger Lift 380V 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
