Product Details:
|
Product Name: | Elevator Gearless Traction Machine | Voltage: | 380V |
---|---|---|---|
Suspension: | 2:1 | Load: | 320-630KG |
Weight: | 190kg | Max.Static Load: | 2000kg |
Applicable: | Elevator Equipment | Warranty Time: | One Year |
Model: | Traction Machine Motor | Product: | Traction Machine Motor |
Type: | Traction Machine Motor | ||
High Light: | IP41 Gearless Traction Motor,320kg Gearless Traction Machine,Lift Traction System Gearless Motor |

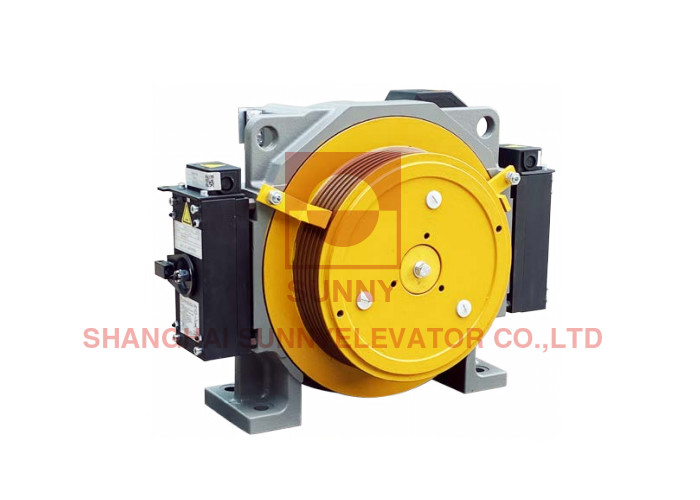

IP41 Elevator Gearless Traction Machine For Lift Traction System
Voltage : 380V
Remark:
The machine can be configured with the handwheel and the remote manual brake release which is 4m.
"When this machine is used for loading 630kg, the coefficient of elevator balance system shouldn't be less than 0.47."
"When this machine is used for loading ≤450kg, the current of brakes are 2*0.84A; when this machine is used for loading >450kg, the current of brakes are 2*1.1A."
Load (kg) |
Speed (m/s) |
Sheave Diam |
Rope sheave |
Current (A) |
Torque (Nm) |
Rated Speed |
Frequency (Hz) |
Power (kw) |
Pole | Rating | INS.Class | IP Code |
320 | 1.0 | Φ325 | 3xΦ8x12 | 6.3 | 200 | 118 | 31.5 | 2.5 | 32 | S5(40%) | F | IP41 |
320 | 1.5 | Φ325 | 3xΦ8x12 | 8.9 | 200 | 177 | 47.2 | 3.7 | 32 | S5(40%) | F | IP41 |
320 | 1.6 | Φ325 | 3xΦ8x12 | 9.4 | 200 | 189 | 50.4 | 4 | 32 | S5(40%) | F | IP41 |
320 | 1.75 | Φ325 | 3xΦ8x12 | 9.4 | 200 | 206 | 54.9 | 4.3 | 32 | S5(40%) | F | IP41 |
450 | 1.0 | Φ325 | 4xΦ8x12 | 8.3 | 265 | 118 | 31.5 | 3.3 | 32 | S5(40%) | F | IP41 |
450 | 1.5 | Φ325 | 4xΦ8x12 | 11.9 | 265 | 177 | 47.2 | 4.9 | 32 | S5(40%) | F | IP41 |
450 | 1.6 | Φ325 | 4xΦ8x12 | 13.7 | 265 | 189 | 50.4 | 5.2 | 32 | S5(40%) | F | IP41 |
450 | 1.75 | Φ325 | 4xΦ8x12 | 13.7 | 265 | 206 | 54.9 | 5.7 | 32 | S5(40%) | F | IP41 |
550 | 1.0 | Φ325 | 5xΦ8x12 | 8.6 | 290 | 118 | 31.5 | 3.6 | 32 | S5(40%) | F | IP41 |
550 | 1.5 | Φ325 | 5xΦ8x12 | 12.4 | 290 | 177 | 47.2 | 5.4 | 32 | S5(40%) | F | IP41 |
550 | 1.6 | Φ325 | 5xΦ8x12 | 14.3 | 290 | 189 | 50.4 | 5.7 | 32 | S5(40%) | F | IP41 |
550 | 1.75 | Φ325 | 5xΦ8x12 | 14.3 | 290 | 206 | 54.9 | 6.3 | 32 | S5(40%) | F | IP41 |
630 | 1.0 | Φ325 | 5xΦ8x12 | 9.6 | 325 | 118 | 31.5 | 4 | 32 | S5(40%) | F | IP41 |
630 | 1.5 | Φ325 | 5xΦ8x12 | 13.9 | 325 | 177 | 47.2 | 6 | 32 | S5(40%) | F | IP41 |
630 | 1.6 | Φ325 | 5xΦ8x12 | 16 | 325 | 189 | 50.4 | 6.4 | 32 | S5(40%) | F | IP41 |
630 | 1.75 | Φ325 | 5xΦ8x12 | 16 | 325 | 206 | 54.9 | 7 | 32 | S5(40%) | F | IP41 |
