Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator

Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator
Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator

Large Image :  Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-MDQ20HS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now

Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator

Description
Product Name: Elevator Gearless Traction Machine Voltage: 380V
Suspension: 2:1 Load: 450KG
Weight: 120kg Max.Static Load: 2000kg
Applicable: Elevator Equipment Warranty Time: One Year
Model: Elevator Gearless Traction Machine Product: Elevator Gearless Traction Machine
Type: Elevator Gearless Traction Machine
High Light:

380V Gearless Lift Machine

,

Passenger Elevator Gearless Traction Motor

,

Sheave 240mm Gearless Traction Machine

Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator

Static load:2000kg
Load:450kg
Speed:up to1m/s
Sheave:240mm
Weight:120kg





Nominal Torque



Short circuited torque



Poles



Encoder
Nm Nm / /
215
S5-25%ED
180s/h		 300 16 ERN1387
ECN1313
EI53C9.25
TS5213N2531
Brake
EMFR DC110V/1.9A[2X200Nm]




/ Ropes
ØD F Ø n° Pitch
mm mm   mm
240 80 8 3-6 12




2:1 Load   Ø Ropes Pitch Torque Power RPM Freq. Current 220V Current 380V
kg m/s mm max mm Nm kW RPM Hz A A
260 0.3 240 3xØ8 12 85 0.43 48 6.4 4.1 2.0
0.4 240 3xØ8 12 85 0.57 64 8.5 4.1 2.0
320 0.3 240 3xØ8 12 122 0.61 48 6.4 5.8 2.8
0.4 240 3xØ8 12 122 0.81 64 8.5 5.8 2.8
0.5 240 3xØ8 12 122 1.02 80 10.6 7.0 3.4
400 0.3 240 3xØ8 12 131 0.65 48 6.4 6.3 3.0
0.4 240 3xØ8 12 152 1.02 64 8.5 7.3 3.5
0.5 240 3xØ8 12 152 1.27 80 10.6 7.3 3.5
1.0 240 3xØ8 12 152 2.54 159 21.2 14.2 6.5
450 0.4 240 4xØ8 12 147 0.98 64 8.5 7.0 3.4
0.5 240 4xØ8 12 171 1.43 80 10.6 8.2 4.8
1.0 240 4xØ8 12 171 2.86 159 21.2 16.0 7.3

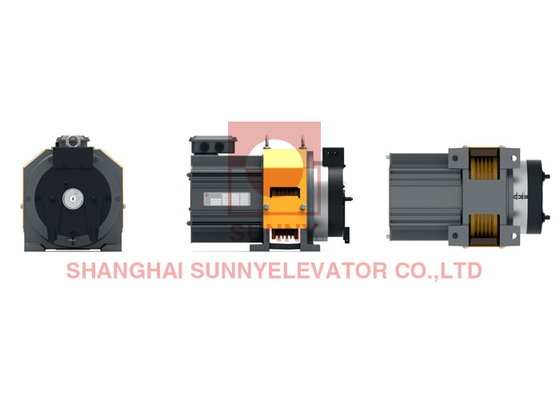

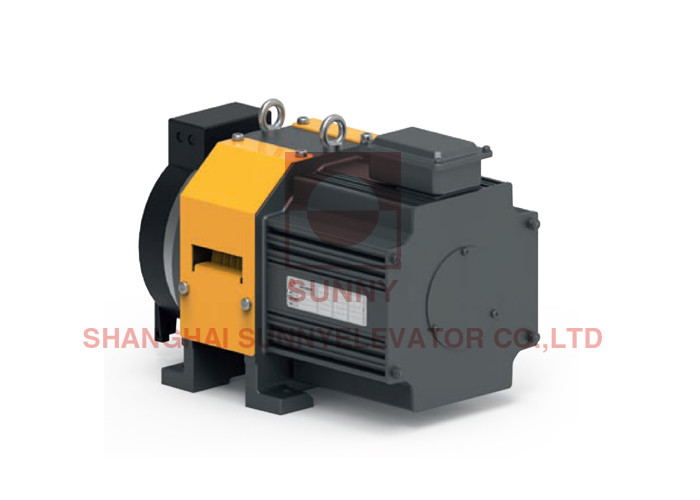

Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator 0

Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator 1

Sheave 240mm Elevator Gearless Traction Machine For Passenger Elevator 2

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
