380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque

380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque
380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque 380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque

Large Image :  380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-MDX36S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now

380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque

Description
Product Name: Elevator Gearless Traction Machine Voltage: 380V
Suspension: 2:1 Load: 1350/1600KG
Weight: 472kg Max.Static Load: 3500kg
Applicable: Elevator Equipment Warranty Time: One Year
Model: Elevator Gearless Traction Machine Product: Elevator Gearless Traction Machine
Type: Elevator Gearless Traction Machine
High Light:

Residential Lift Gearless Traction Motor

,

380V Elevator Gearless Traction Machine

,

1m/s Lift Gearless Traction Motor

380V 850 S5 - 40% ED 180 S/H Nominal Torque Elevator Traction Machine

Static load:3500kg
Load:1350/1600kg
Speed:up to1m/s
Sheave:400/320mm
Weight:472kg





Nominal Torque



Short circuited torque



Poles



Encoder
Nm Nm / /
850
S5-40%ED
180s/h		 900 16 ERN1387
ECN1313
EI53C9.25
TS5213N2531
Brake
EMFR1400 DC110V/2x2.03A[2X1400Nm]




2:1 Load   Ø Ropes Pitch Torque Power RPM Freq. Current 380V
kg m/s mm max mm Nm kW RPM Hz A
1350 0.63 400 10xΦ10 17 885 5.6 60 8.0 18.2
1.0 400 10xΦ10 17 885 8.9 95 12.7 25.6
1.6 400 10xΦ10 17 885 14.2 153 20.4 44.3
2.0 400 10xΦ10 17 885 17.7 191 25.5 44.3
2.5 400 10xΦ10 17 885 22.1 239 31.8 59
3.0 400 10xΦ10 17 885 26.6 286 38.2 59
1600 0.63 320 10xΦ8 17 812 6.4 75 10.0 22.9
1.0 320 10xΦ8 17 812 10.2 119 15.9 26.7
1.6 320 10xΦ8 17 812 16.2 191 25.5 41.1
2.0 320 10xΦ8 17 812 20.3 239 31.8 41.1
2.5 320 10xΦ8 17 812 25.4 298 39.8 55.4

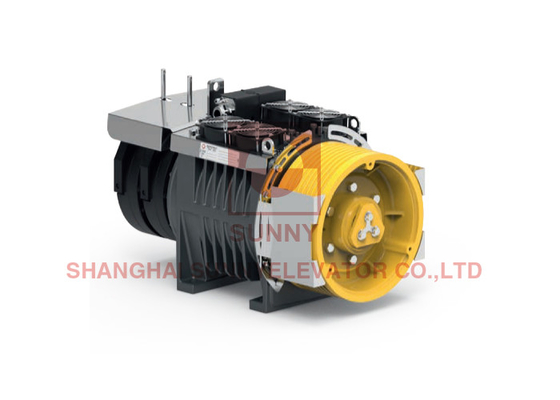

380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque 0

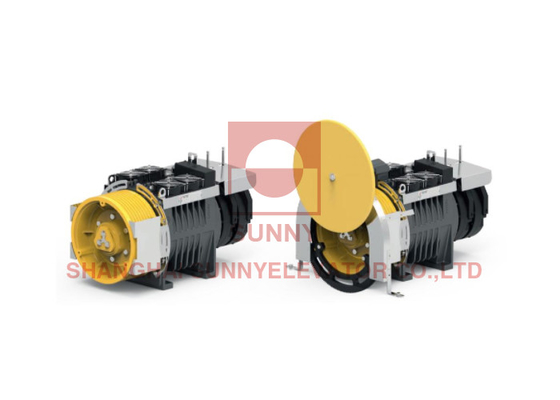

380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque 1

380V Elevator Traction Machine 850 S5 - 40% ED 180 S/H Nominal Torque 2

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
