Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S

Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S
Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S

Large Image :  Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-SUNG320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now

Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S

Description
Product Name: Gearless Traction Machine Voltage: 380V/220V
Suspension: 2:1 Load: 320~450kg
Weight: 120kg Max.Static Load: 2500kg
Applicable: Elevator Equipment Warranty Time: One Year
Model: Gearless Traction Machine Product: Gearless Traction Machine
Type: Gearless Traction Machine
Highlight:

1.0m/S Lift Gearless Traction Machine

,

Single Wrap Elevator Gearless Traction Machine

,

320kg Elevator Traction Machine



Single Wrap Gearless Traction Machine For Elevator Load 320-450kg Speed 0.4m/S-1.0m/S




ELEVATOR TRACTION MACHINE

Suspension

2:1

Voltage

380V/220V

Wrap

Single
Load 320~450kg
Speed 0.4m/s~1.0m/s

Rating

S5-40%ED
Sheave diam 65mm

INS. Class

F

IP Code

IP41

FZD15 Brake

DC110V 2.4A

Max. Static Load

2500kg

Weight

120kg

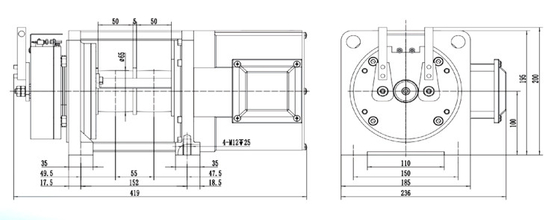

DIMENSIONS

Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S 0




TECHNICAL DATA

Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S 1



Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S 2

Single Wrap Gearless Traction Machine For Elevator Load 320 - 450kg Speed 0.4m/S - 1.0m/S 3

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
