Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG

Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG
Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG

Large Image :  Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE, ISO9001
Model Number: SN-F40
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 5000pcs/month

Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG

Description
Product Name: Gearless Elevator Traction Machine Speed: 1.0-1.5 M/s
Weight: 180 KG Roping: 2:1
Sheave: 400/325 Mm IP Code: IP41
Load: 408-1000 KG Voltage: 380 V
Power: 1.1-7.3 KW Brake: DC110V, 2x2.2A
Model: Gearless Elevator Traction Machine Type: Gearless Elevator Traction Machine
Highlight:

380V Gearless Elevator Traction Machine

,

Seamless Elevator Gearless Motor

,

1000kg Gearless Lift Motor

Gearless Elevator Traction Machine , Gearless Traction Machine, Load 408-1000 KG , SN-F40
Serial

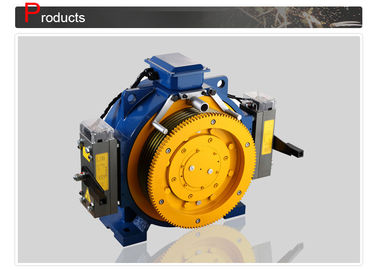

Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG 0

  • For room-less and small machine room;
  • Equipped with plate brake, compact structure, small volume;
  • Enough calculated factor of safety and reliable;
  • High efficiency, energy saving;
  • Seamless structural design with mini distortion;
  • High efficient of the electromagnetic, low temperature rise;
  • Low operation noise, smooth running;


Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG 1


SeriesModel NumberRopingLoad(kg)Speed(m/s)Sheave Diam-Rope Diam x Groove No.-Groove Pitch (mm)Power(Kw)IP CodePoleRPMCurrent(A)
SN-MG SerialSN-F512:16301.0-1.5Ø400-Ø10x4-162.3-9IP413248-1927.4-18
SN-F512:18001.0-1.5Ø400-Ø10x5-162.8-11IP413248-1929-22
SN-F512:110001.0-1.5Ø400-Ø10x5-163.4-13.4IP413248-19211-27
SN-F512:111501.0-1.5Ø400-Ø10x6-163.8-15IP413248-19211-30
SN-F402:13201.0-1.5Ø325-Ø8x3-121.1-2.2IP412459-1183.4-5.4
SN-F402:14501.0-1.5Ø320-Ø8x4-121.5-3IP412459-1184.8-7.6
SN-F402:15501.0-1.5Ø320-Ø8x5-121.9-6.5IP412459-2065.8-14.8
SN-F402:16301.0-1.5Ø320-Ø8x5-122.3-7.4IP412459-2066.7-17


Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG 2

Lift Motor / Gearless Elevator Traction Machine With Load 408 - 1000 KG 3

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
