Traction Elevator System / Gearless Elevator Motor For Machine Lift 630KG

Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG
Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG

Large Image :  Traction Elevator System / Gearless Elevator Motor For Machine Lift 630KG

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE, ISO9001
Model Number: SN-TMMY05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 5000pcs/month

Traction Elevator System / Gearless Elevator Motor For Machine Lift 630KG

Description
Product Name: Gearless Elevator Motor Speed: 0.5 ~ 1.75 M/s
Weight: 400 KG Roping: 2:1
Sheave: Ф400 Mm Load: 630 KG
Voltage: 380 V Power: 3.8-7.8 KW
IP Code: IP 40 Brake: DC110V,2x1.5A
Model: Gearless Elevator Motor Type: Gearless Elevator Motor
Highlight:

elevator traction machine

,

lift traction machine

Gearless Traction Machine for Machine Lift, Load 630-2000 KG , SN-TMMY05

Traction Elevator System / Gearless Elevator Motor For Machine Lift 630KG





Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG 0

  • For room-less and small machine room;
  • Equipped with plate brake, compact structure, small volume;
  • Enough calculated factor of safety and reliable;
  • High efficiency, energy saving;
  • Seamless structural design with mini distortion;
  • High efficient of the electromagnetic, low temperature rise;
  • Low operation noise, smooth running;



Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG 1

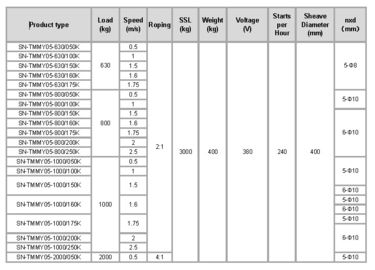

Product type Load (kg)   Speed
(m/s)
Roping SSL
(kg)
Weight
(kg)
Voltage
(V)
Starts per Hour Sheave
Diameter
(mm)
nxd(mm)
SN-TMMY05-630/050K 630 0.5 2:1 3000 400 380 240 400 5-Φ8
SN-TMMY05-630/100K 1
SN-TMMY05-630/150K 1.5
SN-TMMY05-630/160K 1.6
SN-TMMY05-630/175K 1.75
SN-TMMY05-800/050K 800 0.5 5-Φ10
SN-TMMY05-800/100K 1
SN-TMMY05-800/150K 1.5 6-Φ10
SN-TMMY05-800/160K 1.6
SN-TMMY05-800/175K 1.75
SN-TMMY05-800/200K 2
SN-TMMY05-800/250K 2.5
SN-TMMY05-1000/050K 1000 0.5 5-Φ10
SN-TMMY05-1000/100K 1
SN-TMMY05-1000/150K 1.5
6-Φ10
SN-TMMY05-1000/160K 1.6 5-Φ10
6-Φ10
SN-TMMY05-1000/175K 1.75 5-Φ10
6-Φ10
SN-TMMY05-1000/200K 2
SN-TMMY05-1000/250K 2.5
SN-TMMY05-2000/050K 2000 0.5 4:1 5-Φ10



Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG 2



Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG 3



Traction Elevator System  / Gearless Elevator Motor For Machine Lift 630KG 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
