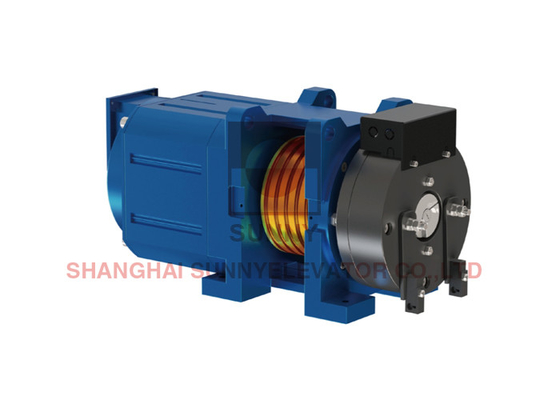

Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage

Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage
Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage

Large Image :  Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-MONA150A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now

Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage

Description
Product Name: Elevator Gearless Traction Machine Voltage: 220/380V
Suspension: 2:1 Load: 320~450KG
Weight: 85kg Max.Static Load: 2500kg
Applicable: Elevator Equipment Warranty Time: One Year
Model: Elevator Gearless Traction Machine Product: Elevator Gearless Traction Machine
Type: Elevator Gearless Traction Machine
Highlight:

380V Gearless Traction Machine

,

Permanent Magnet Gearless Traction Machine

,

Synchronous Gearless Traction Machine

Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage


Type:SN-MONA150A
Voltage 220V/380V
Roping 2:1
Load 320~450kg
Speed 0.4~1.0m/s
Sheave Diam Φ150mm
IP Code IP41
Ins.Class F
Max. Axle Load 2500kg
Duty S5-40%
Weight 85kg



Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage 0

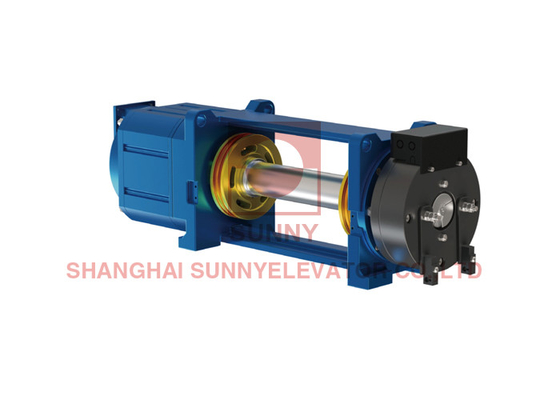

Type:SN-MONA150B



Voltage 220V/380V
Roping 2:1
Load 320~450kg
Speed 0.4~1.0m/s
Sheave Diam Φ150mm
IP Code IP41
Ins.Class F
Max. Axle Load 2500kg
Duty S5-40%
Weight 95kg



Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage 1



Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage 2

Permanent Magnet Synchronous Gearless Traction Machine 220/380V Voltage 3

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
