220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications

Certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
Customer Reviews
Service is people-oriented and honesty is the most attractive. It's a pleasure to cooperate with you

—— Millay

I'm Online Chat Now

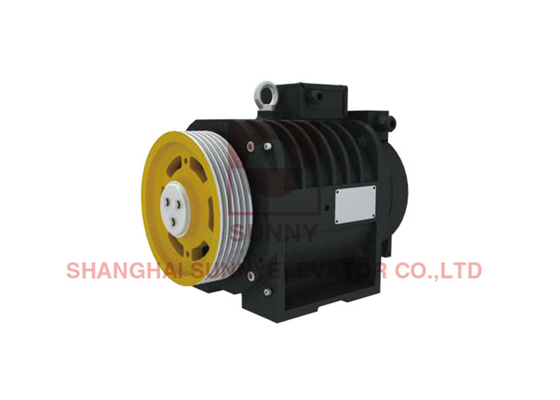

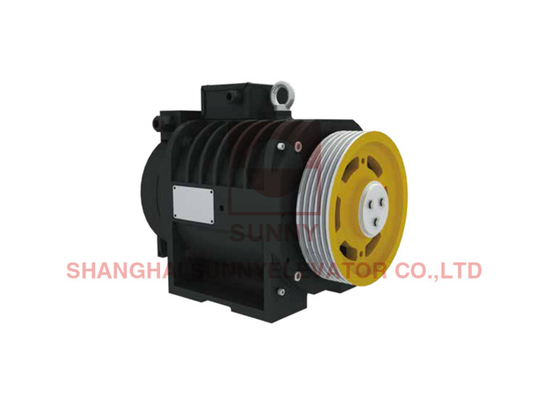

220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications

220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications
220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications 220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications

Large Image :  220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-01-V01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications

Description
Load: 260~450kg Voltage: 220/380V
Speed: 0.3~1.0m/s Diameter: 200/240mm
Product Name: Elevator Parts Weight: 140kg
Applicable: Elevator Equipment Warranty Time: One Year
Transportation: Sea Delivery Application: Elevator.lift
Model: Axle Brake PM Gearless Traction Machine Type: Axle Brake PM Gearless Traction Machine
Product: Axle Brake PM Gearless Traction Machine



220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications



Product Features



Voltage : 220V/380V
Roping: 2:1
Load: 260~450kg
Speed: 0.3~1.0m/s
Protection Grade : IP41
Rating: S5-40%
Ins. Class: F
Wrap : Single
Model: ZLZ-01A
Brake: DC110V 1.8A



Installation Dimension Drawing



220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications 0



Standard Configuration specification Table


220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications 1



220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications 2



220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications 3



220/380V Voltage Axle Brake PM Gearless Traction Machine For Elevator Applications 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
