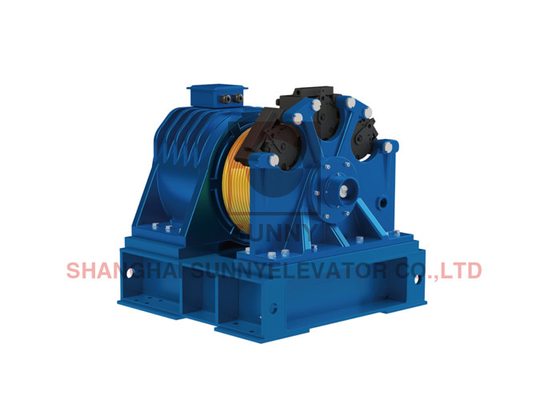

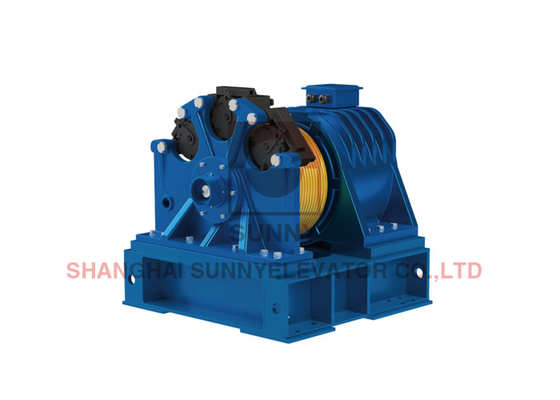

IP41 Rated Gearless Traction Machine For Elevator With Phi 540mm Sheave Diameter

Large Image : IP41 Rated Gearless Traction Machine For Elevator With Phi 540mm Sheave Diameter

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-MDD540

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pcs
Price:	$500~1200
Packaging Details:	Wooden box
Delivery Time:	7~15 days
Payment Terms:	Western Union, T/T, L/C,Paypal
Supply Ability:	5000 Pcs/ Month

Contact Now

IP41 Rated Gearless Traction Machine For Elevator With Phi 540mm Sheave Diameter

Description

Product Name:	Elevator Gearless Traction Machine	Voltage:	380V
Suspension:	2:1	Load:	1350~2500KG
Weight:	1250kg	Max.Static Load:	20000kg
Applicable:	Elevator Equipment	Warranty Time:	One Year
Model:	Elevator Gearless Traction Machine	Product:	Elevator Gearless Traction Machine
Type:	Elevator Gearless Traction Machine
Highlight:	Elevator Gearless Traction Machine , IP41 Rated Gearless Traction Machine

IP41 Rated Gearless Traction Machine For Elevator With Phi 540mm Sheave Diameter

Voltage	380V
Roping	2:1
Load	1350~2500kg
Speed	3.0~6.0m/s
Sheave Diam	Φ540mm
IP Code	IP41
Ins.Class	F
Max. Axle Load	20000kg
Duty	S5-40%
Weight	1250kg

DIMENSIONS

IP41 Rated Gearless Traction Machine For Elevator With Phi 540mm Sheave Diameter 0

SPEC.SHEET

IP41 Rated Gearless Traction Machine For Elevator With Phi 540mm Sheave Diameter 1

Notes:

1.The machine isonly used formachine room.
2,Double wrapping.
3,The machine isequipped with electricalbrakerelease device.

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
