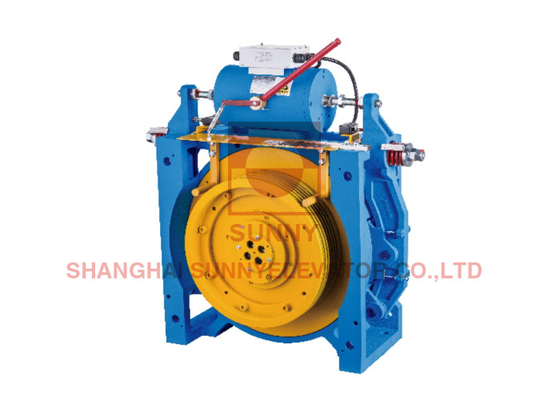

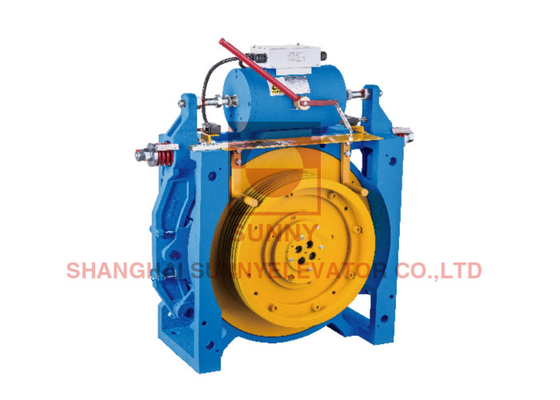

450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design

450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design
450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design 450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design

Large Image :  450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-WWTY8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design

Description
Product Name: Elevator Gearless Motor Brake Voltage: DC110V
Poles: 32 Load: 450~630kg
Product Name: Elevator Parts Voltage: 350kg
Speed: 0.63~1.75m/s Warranty Time: One Year
Model: Elevator Gearless Motor Type: Elevator Gearless Motor
Highlight:

Single Wrap Gearless Traction Machine

,

630kg Gearless Traction Machine

,

Low Noise Gearless Traction Machine



450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design



Product characteristics



Maximum shaft load: 3000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for brake opening, and DC100V for brake holding
Number of motor poles: 32 poles



Product description

This series of permanent-magnet synchronous gearless traction machines is directly driven by a low-speed, high-torque, 3-phase permanent
magnet synchronous motor, and thus has the advantages of low energy consumption, low noises, no pollution, and litle maintenance.
These traction machines can be arranged for providing upward traction or downward traction, and have manual brake release function; Can be
fitted with the encoder pre installed, remote manual brake release function.
This series of permanent-magnet synchronous gearless traction machines adapts single wrap, and roping factor is 2:1



Overall dimensions and mounting dimensions

450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design 0



450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design 1



450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design 2



450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design 3



450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design 4450~630kg Low-Noise Gearless Traction Machine For Elevators With Single Wrap Design 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
