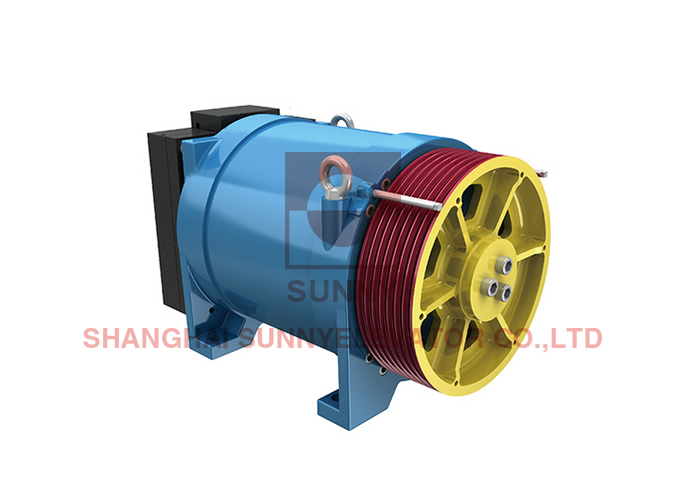

Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s

Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s
Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s
Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s

Large Image :  Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-FRD32E
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000pcs/month
Contact Now

Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s

Description
Name: Gearless Elevator Machine Load: 450~1000KG
Speed: 0.5-1.75m/s Traction Ratio: 2:1
Static Load: 3000kg Brake: DC110V,2*1.5A
Warranty Time: 12 Months Application: Elevator.lift
Model: Gearless Elevator Machine Type: Gearless Elevator Machine
Highlight:

Gearless elevator machine AC380V

,

Gearless traction machine 450-1000KG

,

Gearless elevator motor 0.5-1.75m/s

AC380V Sightseeing Gearless Traction Machine For Machine Roomless Lift
Product Specifications
Attribute Value
Name Gearless Elevator Machine
Load 450~1000KG
Speed 0.5-1.75m/s
Traction ratio 2:1
Static load 3000kg
Brake DC110V,2*1.5A
Warranty time 12 Months
Application elevator.lift
Model Gearless Elevator Machine
Type Gearless Elevator Machine
Product Description

This series of main units are widely used in the configuration of inorganic guest elevators and sightseeing elevators.

  • Supply voltage: AC380V
  • Traction ratio: 2:1
  • Protection grade: IP41
  • Elevator speed: 0.5-1.75m/s
  • Rated capacity: 450kg~1000kg
  • Brake: DC110V,2*1.5A
  • The maximum axial load: 3000kg
  • Duty type: S5-40%
Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s 0 Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s 1 Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s 2 Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s 3 Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s 4 Gearless Elevator Machine AC380V 450-1000KG 0.5-1.75m/s 5
Frequently Asked Questions
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. The tensile strength exceeds the lift weight, with a safety factor of four or more wire ropes, preventing simultaneous breakage.
2. Is it dangerous during sudden power failure while the elevator is running?
In such cases, the elevator automatically stops due to electrical and mechanical safety devices. The brakes engage during power failure. Planned outages are preceded by prior notice from power supply departments.
3. Will users be hurt if the doors close suddenly?
The doors automatically reopen when touched during closing, with anti-pinch switches preventing closure. The closing force is carefully calibrated for safety.
4. How does the elevator operate?
Elevators move via counterweight wire ropes through traction drive, moving vertically along guide rails.
5. Is escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, enabling easier installation and more convenient commissioning.
6. Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
