Product Details:
|
| Product Name: | Elevator Gearless Traction Machine | Rope Dia: | 8mm |
|---|---|---|---|
| Brake: | DC110V | Load: | 320~450kg |
| Warranty Time: | One Year | Sheave Dia: | 210mm Or 240mm |
| Type: | Lift Motor | Applicable: | Elevator Equipment |
| Transportation: | Sea Delivery | Color: | Black Red Blue Gray |
| Model: | Lift Motor | Product: | Lift Motor |
| High Light: | 0.4m/S Gearless Lift Motor,Elevator Gearless Lift Motor |
||

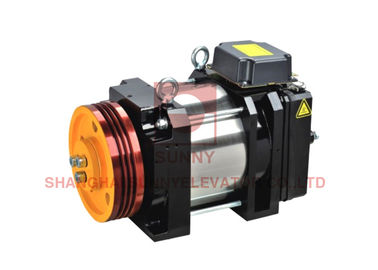

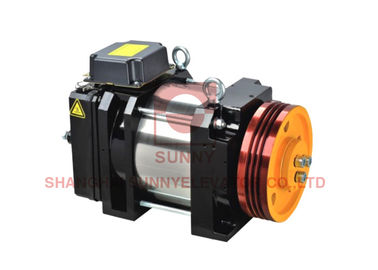

320~450kg Elevator Gearless Traction Machine and Lift Motor 0.4m/s
What is a gearless traction elevator?
Gearless Traction Elevators. These traction elevators have the wheel directly attached to the electric motor. Gearless traction elevators have a very high travel speed i.e. up to 2000 ft. per minute and can travel a great distance.
Characteristics
| Load | 320kg~450kg | Number of Grooves | 3-4 | Rating | S5~40% |
| Speed | 0.4m/s | Shape of Groove | U Shape | Braking | Shaft Braking |
| Suspension | 2:1 | Y=35° | β=96° | Voltage of Brake | DC110V |
| Max.Static Load | 2000kg | Pole pairs | 8 | Current of Brake | 1.0A*2 |
| Rope Dia | 8mm | Insulation Standard | F | Encoder | Heidenhain 1387-2048 |
| Sheave Dia | 210mm or 240mm | IP Code | IP41 |
| Model |
Load (kg) |
Speed (m/s) |
Height (m) |
Torque (Nm) |
Sheave Dia. (mm) |
Rope Dia. (mm) |
Groove (pcs) |
Distance Between Grooves |
Power (KW) |
Rated Voltage (V) |
Current (A) |
Frequency (Hz) |
Rated Speed (rpm) |
| ACT(SAG)-M0320.04 | 320 | 0.4 | ≤25 | 110 | 210 | 8 | 3 | 12 | 0.85 | 380 | 5.5 | 9.73 | 73 |
| ACT(SAG)-M0400.04 | 400 | 0.4 | ≤25 | 140 | 4 | 1.1 | 6.5 | ||||||
| ACT(SAG)-M0450.04 | 450 | 0.4 | ≤25 | 160 | 4 | 1.2 | 7.5 | ||||||
| ACT(SAG)-M0320.04 | 320 | 0.4 | ≤25 | 110 | 3 | 0.85 | 220 | 5.5 | |||||
| ACT(SAG)-M0400.04 | 400 | 0.4 | ≤25 | 140 | 4 | 1.1 | 6.5 | ||||||
| ACT(SAG)-M0450.04 | 450 | 0.4 | ≤25 | 160 | 4 | 1.2 | 7.5 | ||||||
| ACT(SAG)-M0320.04 | 320 | 0.4 | ≤25 | 128 | 240 | 8 | 3 | 12 | 0.85 | 380 | 6.2 | 8.53 | 64 |
| ACT(SAG)-M0400.04 | 400 | 0.4 | ≤25 | 160 | 4 | 1.1 | 7.5 | ||||||
| ACT(SAG)-M0450.04 | 450 | 0.4 | ≤25 | 180 | 4 | 1.2 | 9 | ||||||
| ACT(SAG)-M0320.04 | 320 | 0.4 | ≤25 | 128 | 3 | 0.85 | 220 | 6.2 | |||||
| ACT(SAG)-M0400.04 | 400 | 0.4 | ≤25 | 160 | 4 | 1.1 | 7.5 | ||||||
| ACT(SAG)-M0450.04 | 450 | 0.4 | ≤25 | 180 | 4 | 1.2 | 9 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
