Product Details:
|
| Name: | Gearless Traction Machine | Load: | 630~1000kg |
|---|---|---|---|
| Speed: | 1.0-2.5m/S | Roping: | 2:1 |
| Weight: | 270/340kg | Voltage: | 380V |
| Diameter: | 400/480mm | Warranty Time: | 12 Months |
| Model: | Gearless Traction Machine | Product: | Gearless Traction Machine |
| High Light: | Block Brake Gearless Traction Machine,630kg Gearless Traction Machine,2.5m/S Gearless Traction Machine |
||
Block brake PM gearless traction machine 630-1600kg

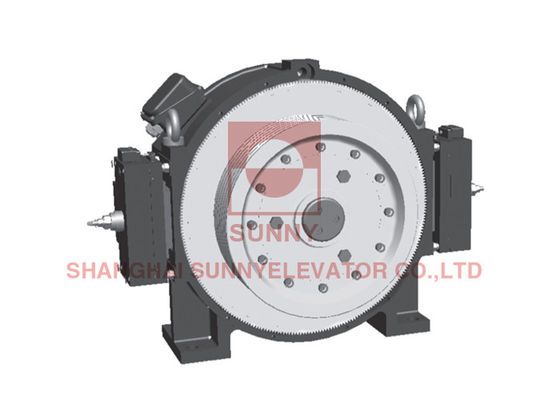

2.5m/S 630kg Block Brake Gearless Traction Machine For Elevator Parts
Compact structure, suitable for MR and MRL elevator
Motor with outer rotor structure
Using the block brakes, advanced technology, short response time for power turning off, reliable braking
Traction sheave with diameter of 340mm/400mm is applicable for this machine
1350-1600kg
Large bearing capacity, suitable for large load passenger elevator, cargo elevator, hospital elevator
Traction sheave with diameter of 480mm is applicable for this machine
| Type | SN-TM103-08.1/1.0~1.75 | SN-TM103-08.2/1.0~1.75 | SN-TM103-08.3/1.0~2.5 | ||||||||
| Traction ratio | 2:1 | ||||||||||
| Rated voltage(V) | 380 | ||||||||||
| Rated load(kg) | 630 | 800 | 1000 | ||||||||
| Max axis load(kN) | 22 | 35 | |||||||||
| Self weight(kg) | 270 | 340 | |||||||||
| Lift speed(m/s) | 1 | 1.5 | 1.6/1.75 | 1 | 1.5 | 1.6/1.75 | 1 | 1.5 | 1.6/1.75 | 2 | 2.5 |
| Rope groove | 5-8 | 5-10 | 6-10 | 7-10 | |||||||
| Traction wheel diameter(mm) | 340 | 400 | |||||||||
| Type | SN-TM103-08.4/1.0~2.5 | SN-TM103-08.5/1.0~2.5 | ||||
| Traction ratio | 2:1 | |||||
| Rated voltage(V) | 380 | |||||
| Rated load(kg) | 1350 | 1600 | ||||
| Max axis load(kN) | 70 | |||||
| Self weight(kg) | 700 | |||||
| Lift speed(m/s) | 1 | 1.5/1.6/1.75 | 2.0/2.5 | 1 | 1.5/1.6/1.75 | 2.0/2.5 |
| Rope groove | 6-12 | 7-12 | ||||
| Traction wheel diameter(mm) | 480 | |||||
Delivery
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
