Product Details:
|
Name: | Elevator Gearless Traction Machine | Control: | VVVF |
---|---|---|---|
Static Load: | 320~800kg | Voltage: | DC220V |
Model: | Elevator Gearless Traction Machine | Business Type: | Manufacturer |
Drive Mode: | AC | Persons: | 6-10 |
Type: | Elevator Gearless Traction Machine | ||
Highlight: | No Pollution Gearless Traction Machine,Gearless Traction Machine Low Noise,VVVF Elevator Traction Machine |

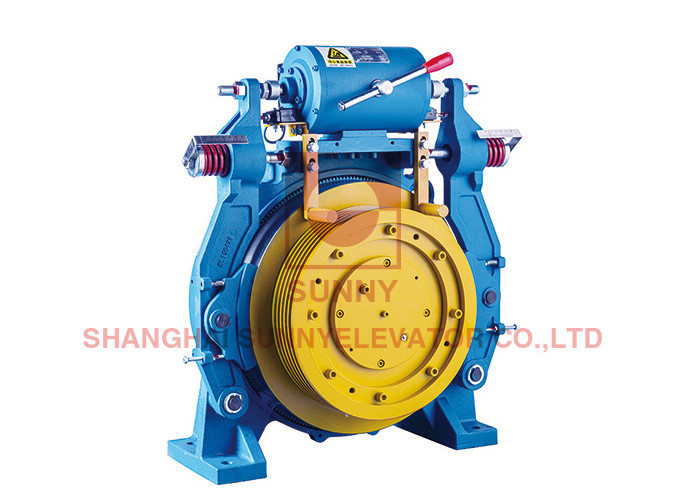

Low Noise And No Pollution Elevator Gearless Traction Machine
Product Characteristics
Product Name | High Torque Elevator Gearless Traction Machine (SN-TMWWTY 6) |
Traction ratio | 2:1 |
Rated capacity | 320,400,500,630,800KGS |
Rated elevator speed | 0.63-1.75m/s |
Max. lifting height | 120m |
Max. shaft load | 2200 KGS |
Applicable converter | 3 phase 400V |
Brake voltage | DC200V, DC110V |
Number of motor poles | 20 poles |
Certificate | ISO9001 / CCC / CE |
Features | Low-energy, Low noises, Non-pollution, Less maintenance |
Payments | T/T, L/C |
![]() |
This series of permanent-magnet synchronous gearless traction machines is directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and thus has the advantages of low energy consumption, low noises, no pollution, and little maintenance.
These traction machines can be arranged for providing upward traction or downward traction, and have manual brake release function.
This series of permanent-magnet synchronous gearless traction machines adapts single wrap, and roping factor is 2:1.

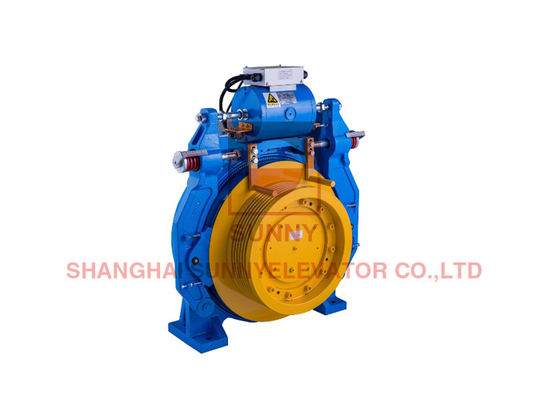

Product Name | Gearless Traction Machine Low Noise and No Pollution(SN-TMWWTY 6) |
Traction ratio: | 2:1 |
Rated capacity: | 630, 800, 1000, 1150kg |
Rated elevator speed: | 0.63,1,1.6,1.75,2.0m/s |
Max. shaft load: | 3000kg |
Applicable converter: | 3 phase 400V |
Brake voltage: | DC200V for Brake opening, and DC100V for brake holding |
Number of motor poles: | 20 poles |
![]() |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
