Product Details:
|
| Product Name: | Elevator Traction Machine | Voltage: | 340V |
|---|---|---|---|
| Suspension: | 2:1 | Brake: | DC90V 40V |
| Weight: | 960kg | Max.Static Load: | 10000kg |
| Guide Rail: | T Guide | Specification: | ISO9001 / CCC / CE |
| Model: | Elevator Traction Machine | Type: | Elevator Traction Machine |
| Highlight: | 340V Elevator Traction Machine,10m/S Elevators Gearless Traction Machine,Single Wrap Gearless Lift Motor |
||

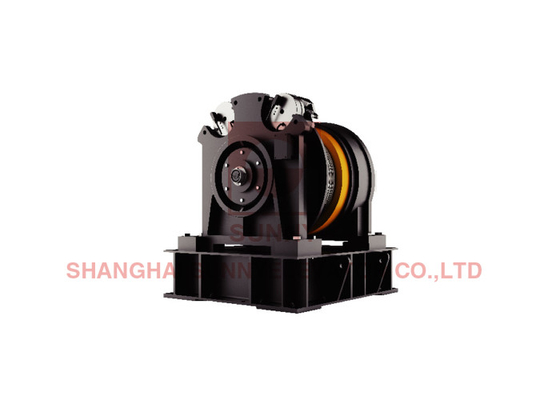

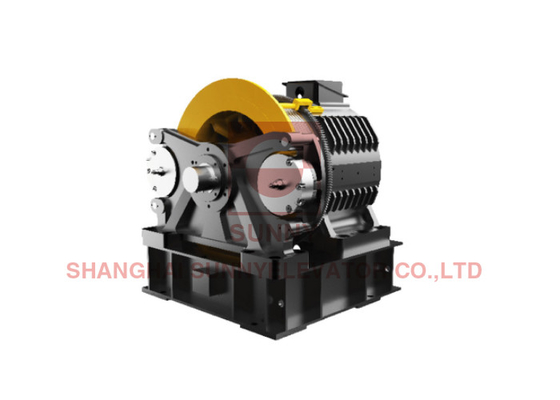

340V Voltage Elevator Traction Machine For High-Speed Elevators
This series of tractio machine is applicable for elevators with large rated load and Max.rated speed at 10m)/s which is instlle in ultra highrise buildings. Both singlewrap and double wrapis avaiable.Advanced technrologies i uch as in emnalrotor & dual supporting stuture is adopted to ensure igheficiency and smooth operation.The adoption of imported brakes, inhouse made high-performance magnets and other famou-brand parts guaranes its temperature rsing and nose level much lowerthan the level required by relevant standards.
Type:SN-GETM10C
Max axis load:10000kg
Motor Weight:960kg
Working duty:S5-40%ED
Ins.class:155(F)
Brake type:QZD1-A-B0
| Product type | Traction Ratio | Load (kg) |
Elevator Speed (m/s) |
Rated speed (r/min) |
Rated torque (N.m) |
Motor | Brake | Sheave | ||||||||||
| Power (kw) |
Voltage (V) |
Current (A) |
Poles (P) |
Frequency (Hz) |
Current (A) |
Voltage (V) |
Brake torque (N.m) |
Diameter (mm) |
Rope nxd |
β angle | Y angle | Goove pitche (mm) |
||||||
| GETM10C-250/1600 | 2:1 | 1600 | 2.5 | 233 | 1004 | 24.5 | 340 | 58 | 12 | 46.6 | 2x1.55 | DC90/40V | 1570 | 410 | 14xΦ10 | Semi-Circular Groove | 12.7 | |
| GETM10C-200/1600 | 2.0 | 186 | 19.6 | 45 | 37.2 | |||||||||||||
| GETM10C-175/1600 | 1.75 | 163 | 17.2 | 38 | 32.6 | |||||||||||||
| GETM10C-100/1600 | 1.0 | 93 | 9.8 | 22 | 18.6 | |||||||||||||
| GETM10C-250/1350 | 2:1 | 1350 | 2.5 | 233 | 848 | 20.7 | 340 | 46 | 12 | 46.6 | 2x1.55 | DC90/40V | 1570 | 410 | 14xΦ10 | Semi-Circular Groove | 12.7 | |
| GETM10C-200/1350 | 2.0 | 186 | 16.5 | 34 | 37.2 | |||||||||||||
| GETM10C-175/1350 | 1.75 | 163 | 14.5 | 30 | 32.6 | |||||||||||||
| GETM10C-100/1350 | 1.0 | 93 | 8.3 | 17 | 18.6 | |||||||||||||
| GETM10C-300/1150 | 2:1 | 1150 | 3.0 | 280 | 722 | 21.1 | 340 | 48 | 12 | 56 | 2x1.55 | DC90/40V | 1570 | 410 | 14xΦ10 | Semi-Circular Groove | 12.7 | |
| GETM10C-250/1150 | 2.5 | 233 | 17.6 | 37 | 46.6 | |||||||||||||
| GETM10C-200/1150 | 2.0 | 186 | 14.1 | 29 | 37.2 | |||||||||||||
| GETM10C-175/1150 | 1.75 | 163 | 12.3 | 26 | 32.6 | |||||||||||||
| GETM10C-100/1150 | 1.0 | 93 | 7.0 | 15 | 18.6 | |||||||||||||
Type:SN-GETM12C
Max axis load:12000kg
Motor Weight:1460kg
Working duty:S5-40%ED
Ins.class:155(F)
Brake type:EC-5415SM-C
| Product type | Traction Ratio | Load (kg) |
Elevator Speed (m/s) |
Rated speed (r/min) |
Rated torque (N.m) |
Motor | Brake | Sheave | ||||||||
| Power (kw) |
Voltage (V) |
Current (A) |
Poles (P) |
Frequency (Hz) |
Current (A) |
Voltage (V) |
Brake torque (N.m) |
Diameter (mm) |
Rope nxd |
β angle | ||||||
| GETM12C-400/1600 | 2:1 | 1600 | 4.0 | 283 | 1505 | 44 | 513 | 65 | 16 | 75.5 | 2x1.55 | DC90 | 2x1856 | 540 | 12xΦ13 | Semi-Circular Groove |
| 340 | 91 | |||||||||||||||
| GETM12C-350/1600 | 3.5 | 248 | 39 | 513 | 55 | 66 | ||||||||||
| 340 | 80 | |||||||||||||||
| GETM12C-300/1600 | 3.0 | 212 | 33 | 513 | 48 | 56.5 | ||||||||||
| 340 | 71 | |||||||||||||||
| GETM12C-400/1350 | 2:1 | 1350 | 4.0 | 283 | 1272 | 37 | 513 | 53 | 16 | 75.5 | 2x1.55 | DC90 | 2x1856 | 540 | 12xΦ13 | |
| 340 | 77 | |||||||||||||||
| GETM12C-350/1350 | 3.5 | 248 | 33 | 513 | 47 | 66 | ||||||||||
| 340 | 70 | |||||||||||||||
| GETM12C-300/1350 | 3.0 | 212 | 28 | 513 | 40 | 56.5 | ||||||||||
| 340 | 57 | |||||||||||||||
| GETM12C-400/1150 | 2:1 | 1150 | 4.0 | 283 | 1080 | 32 | 513 | 46 | 16 | 75.5 | 2x1.55 | DC90 | 2x1856 | 540 | 12xΦ13 | |
| 340 | 65 | |||||||||||||||
| GETM12C-350/1150 | 3.5 | 248 | 28 | 513 | 40 | 66 | ||||||||||
| 340 | 57 | |||||||||||||||
| GETM12C-300/1150 | 3.0 | 212 | 24 | 513 | 34 | 56.5 | ||||||||||
| 340 | 49 | |||||||||||||||
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
