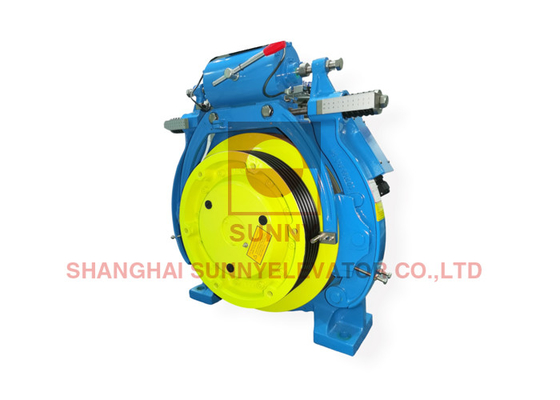

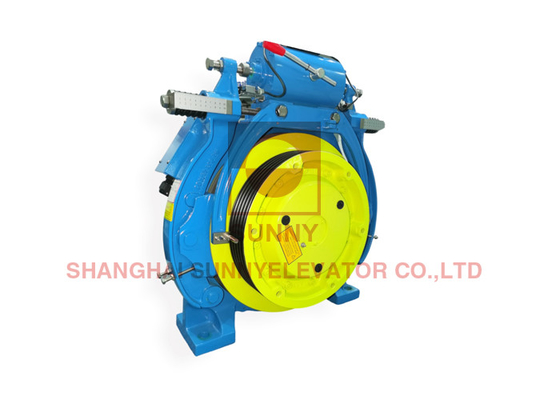

Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity

Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity
Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity

Large Image :  Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-WT-A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $500~1200
Packaging Details: container
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month
Contact Now

Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity

Description
Name: Gearless Traction Machine Load: 630~1600kg
Speed: 1.0-2.5 M/S Roping: 2:1
Sheave: 400mm Poles: 32
Product Name: Elevator Parts Applicable: Elevator Equipment
Transportation: Sea Delivery Warranty Time: 12 Months
Model: Gearless Traction Machine Product: Gearless Traction Machine
Highlight:

400mm Sheave Gearless Traction Machine

,

32 Poles Gearless Traction Machine

,

1600kg Load Gearless Traction Machine



Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity


Capacity:6300kg~1600kg
Roping:2:1

Single Wrap

Foot Pad Flatness:＜0.5mm

Protection Rating:IP40

Insulation Class:F

Poles:32

Drum Brake

Brake Voltage:DC110V

Full-wave rectification power source for brake

Motor Rated Voltage:AC380V

Duty Cycle:S5-40%



SINGLE WRAP (EXTERNAL ROTOR)

Load
kg		 Speed
m/s		 Rated
Output
kW		 Rated
current
A		 Rated
speed
rpm		 Frequency
Hz		 Sheave
Diameter
mm		 Torque
Nm		 Ropes Groove
Dist
mm		 Cut
Angle		 Groove
Angle		 Roping Shaft
Load
kg		 Handle wheel Remote
Release		 Inertia
kg m^2		 Weight
kg
630 1 4.3 11 95 25.3 400 432 4- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.50 305
630 1.5 6.4 18 143 38.1 400 425 4- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.50 305
630 1.6 6.8 18 153 40.8 400 425 4- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.50 305
630 1.75 7.4 18 167 44.5 400 423 4- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.50 305
800 1.0 5.4 12.5 95 25.3 400 543 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.50 305
800 1.5 8.1 22 143 38.1 400 540 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.50 305
800 1.6 8.6 22 153 40.8 400 537 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.50 305
800 1.75 9.6 22 167 44.5 400 549 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.50 305
800 2.0 11 26.5 191 50.9 400 550 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.80 310
800 2.5 13.8 32.5 239 63.7 400 550 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.80 310
1000 1.0 6.4 15 95 25.3 400 640 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.80 310
1000 1.5 10 24 143 38.1 400 665 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.80 310
1000 1.6 10.7 27.5 153 40.8 400 665 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.80 310
1000 1.75 11.7 27.5 167 44.5 400 669 5- Φ 10 14 β=95° y=30° 2:1 3,000 N Y 3.80 310





Notes:
1.Brake voltage is Dc110v Other brake voltage please consult engineers
2.DC brake requires step-down transformer in cabinet to guarantee holding voltage is 50% of picking voltage.
3.180°Wrap angle and MRL application



Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity 0



Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity 1



Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
